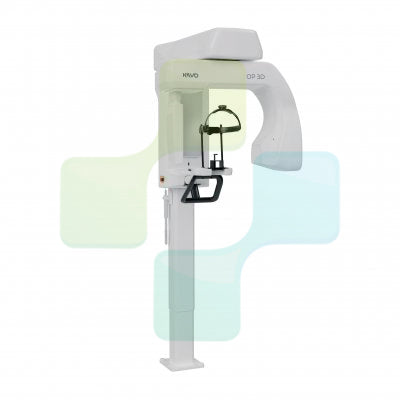

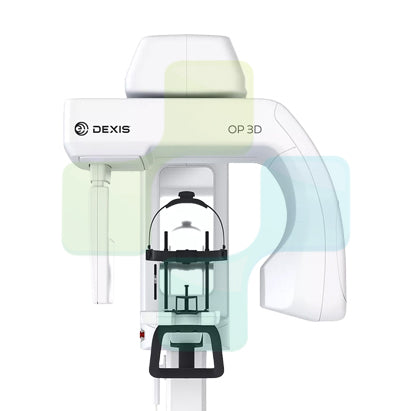

Dexis OP 3D CBCT
Please contact us directly to receive a customised quote based on your specific needs. Finance available.
With its versatile imaging programs and intuitive user interface, the DEXIS OP 3D in its different configurations offers imaging excellence for a variety of users, ranging from general dental practitioners to orthodontists, all the way to maxillofacial surgeons.
DTX Studio™ suite connects the devices and technologies in your dental practice or lab – in one single platform.
OP 3D Highlights

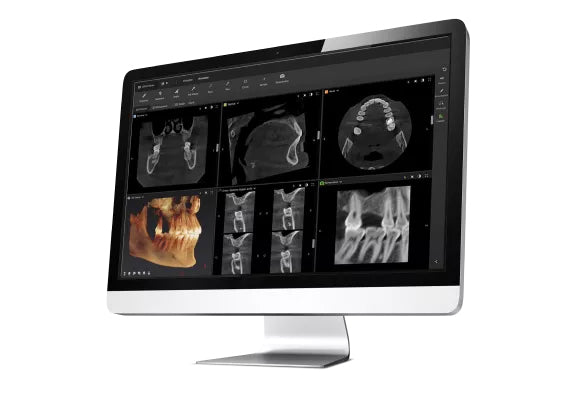

Designed for efficiency
Every feature of the DEXIS OP 3D is designed to increase practice efficiency. Preparing the device for a scan is fast with an easy patient positioning system and intuitive graphical user interface. All imaging protocols are optimized for practice workflows.

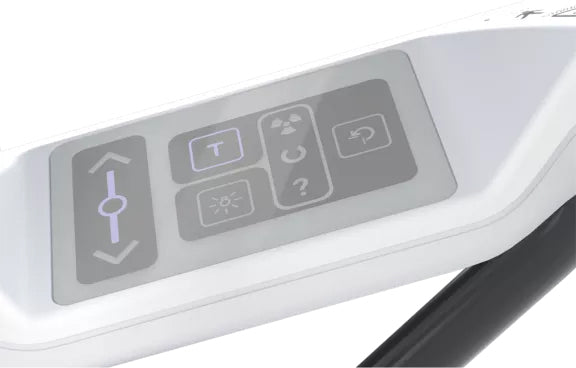

Intuitive operation, connected to the future
All functions can be easily and intuitively controlled in a time-saving way via your laptop or PC through the practice’s local network. Only the patient positioning is set on the device.

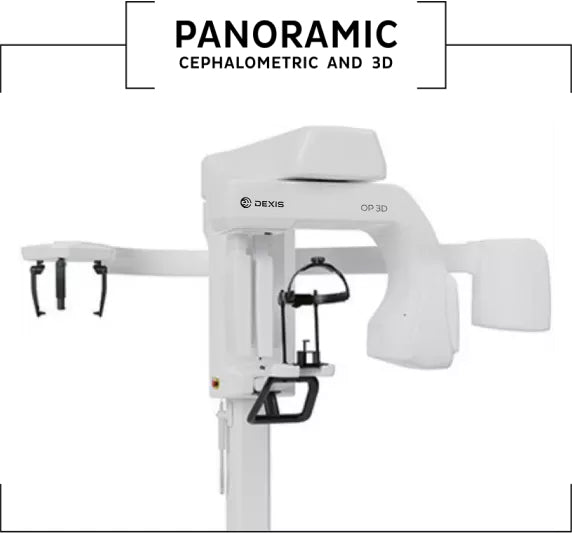

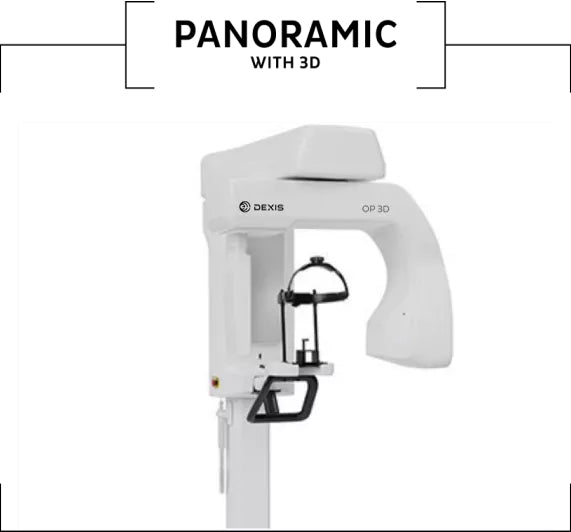

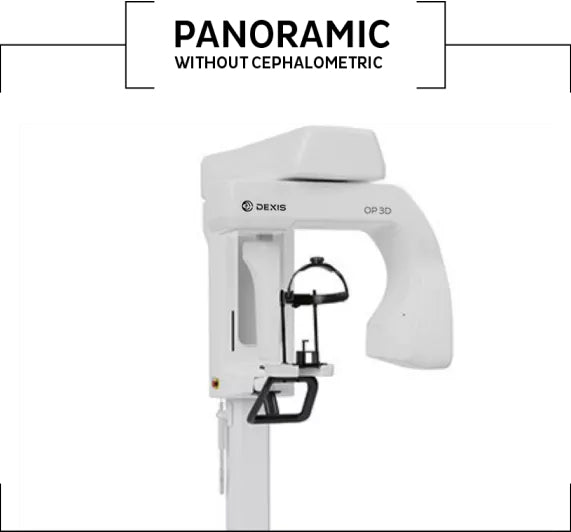

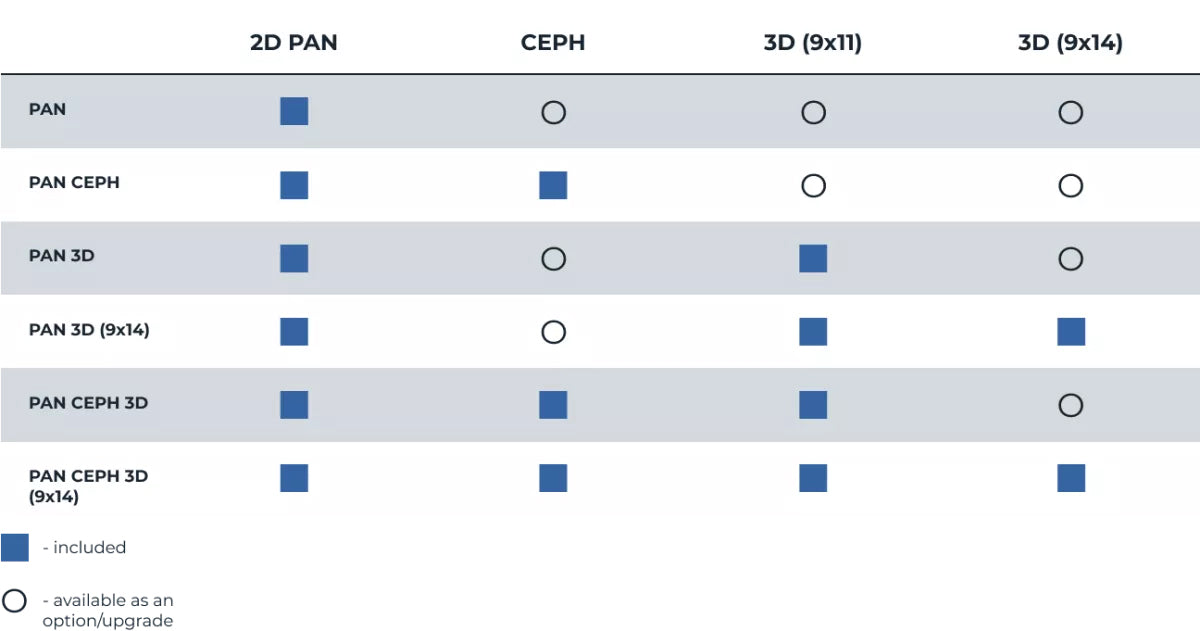

Configuration
3D
- 4 resolutions for 3D (Low Dose Technology™ (LDT), Standard, High, Endo) combined with Metal Artifact Reduction (MAR) technology
- 4 predefined volumes: 5x5, 6x9, 9x11 and (optional) 9x14 cm - thanks to SMARTVIEW™ 2.0 the volumes are freely positionable and height adjustable in 5 mm steps between 5 and 9 cm before the exposure, leading up to 36 possible FOV sizes in total.
Panoramic
- Fast Scan - 2D panoramic imaging in just 9 seconds
- ORTHOfocus™ feature for providing the optimum panoramic image layer automatically
- Panoramic programs for covering the daily needs of a busy practice

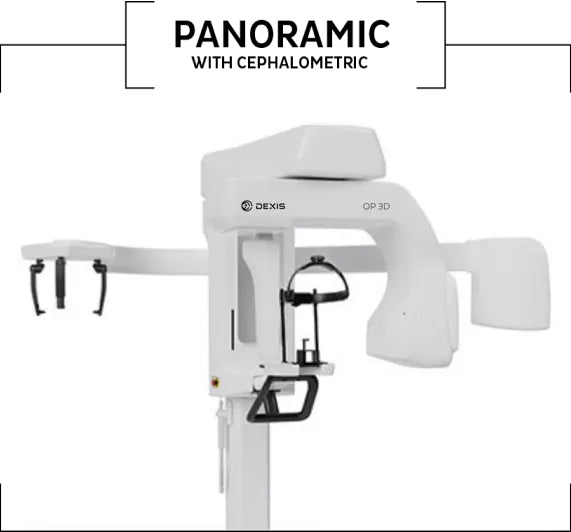

Cephalometric
- Innovative and patented ORTHOceph™ Plus design with fast cephalometric imaging scan times and adjustable field sizes for perfect image quality with minimal dose
The DEXIS OP 3D can grow with your clinical needs
The DEXIS OP 3D is designed to be upgradeable, allowing it to grow with the needs of your practice. The cephalometric or 3D imaging capabilities can be added also later on.
Features
Four predefined 3D volume diameters plus the possibility to customise the volume size

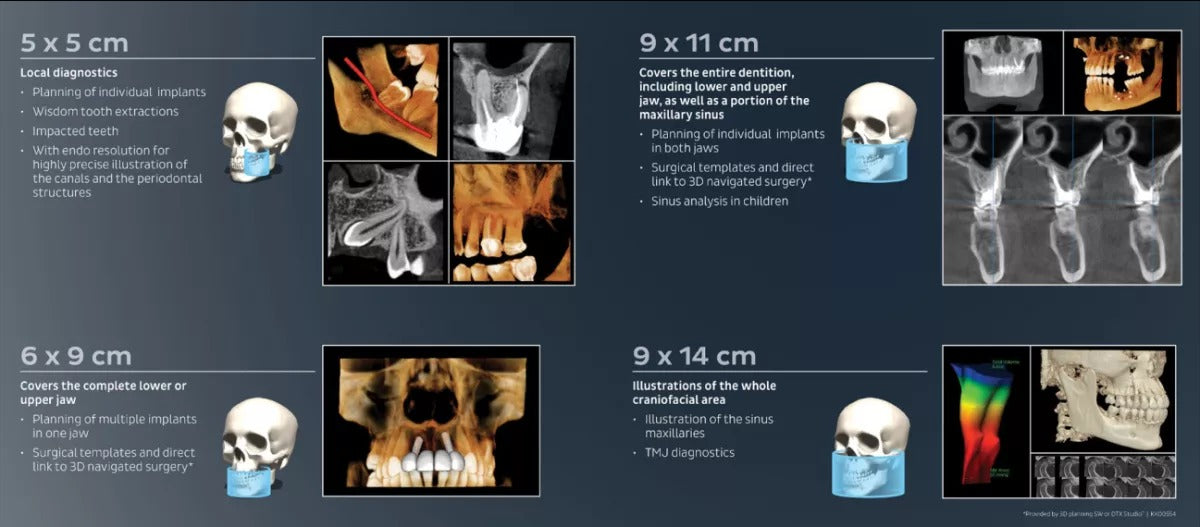

The four predefined FOVs of the DEXIS OP 3D are based on true clinical needs and adjustable in height. FOV 5x5 with its endo resolution is optimised for single-tooth and localised diagnostics. FOV 6x9 offers the capability of scanning either the lower or upper jaw, whereas FOV 9x11 combines both. With the largest FOV 9x14, TMJs can be conducted.
Metal Artifact Reduction (MAR): To provide optimum image quality, the Metal Artifact Reduction (MAR) is activated with all FOV sizes and resolutions of the DEXIS OP 3D. MAR is optimized to assist in all cases ranging from endodontics and implants planning to maxillofacial imaging.
PAN
Panoramic images with automatically selected optimum layer - ORTHOfocus
Programs to fit your clinical needs: Standard, pediatric and segmented panoramics along with bitewing and lateral-TMJ programs are included to cover the panoramic imaging needs of a busy practice. With the ORTHOfocus feature, the optimum panoramic image layer is automatically obtained, enabling forgiving patient positioning. The result is consistent image quality every time.

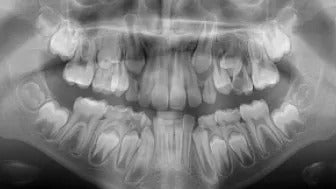

The pediatric panoramic program has a clinically adapted image layer and reduced image height.

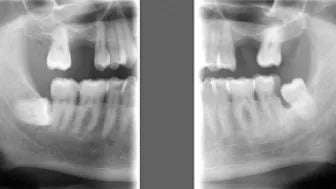

The bitewing program provides a quick and easy alternative to intraoral bitewing imaging.
The TMJ program provides a lateral view of temporomandibular joints, with an open or closed mouth.
QUICKcompose feature: fast image review
Available for panoramic, cephalometric and 3D modalities, the QUICKcompose feature offers a quick preview of the captured image, allowing a timely evaluation. The image appears on the graphical user interface automatically as soon as the scan is completed.
CEPH
Cephalometric imaging for all your clinical needs

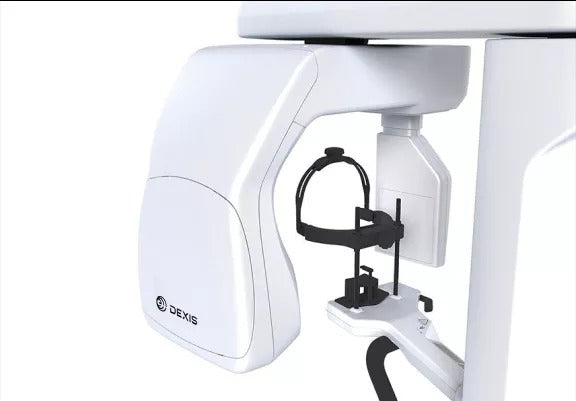

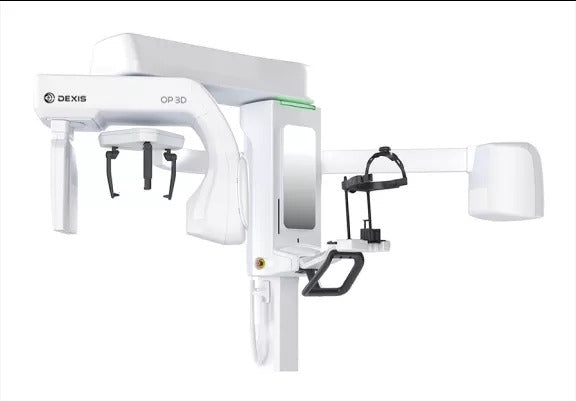

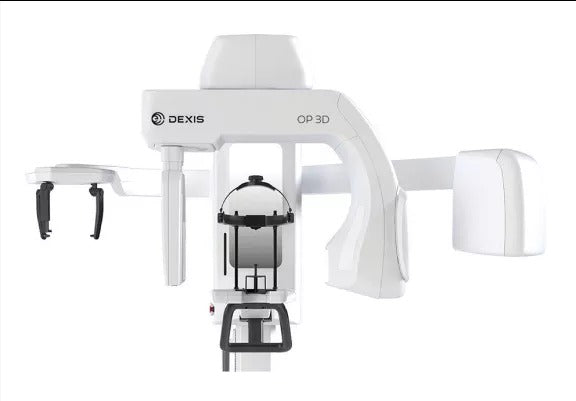

The innovative, patented ORTHOceph Plus design of the DEXIS OP 3D takes cephalometric imaging workflow to a new level. The DEXIS OP 3D provides all needed protocols such as lateral and pediatric lateral projections with adjustable field widths, posterior-anterior (PA) projections and carpus (carpus holder is optional) imaging — with fast scan times and a minimal dose. All combined with an intuitive graphical user interface and automated sensor movements to enable smooth workflows.
Lateral cephalometric images provide rich anatomical details with exceptional visibility of the soft tissue borderline.

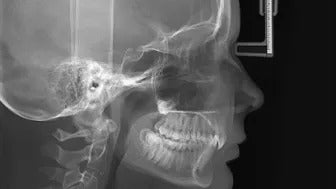

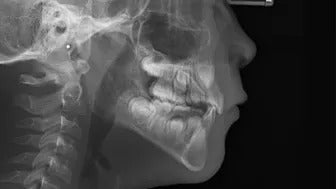

Pediatric lateral images with reduced height and minimal radiation exposure for the dose-sensitive pediatric patients.

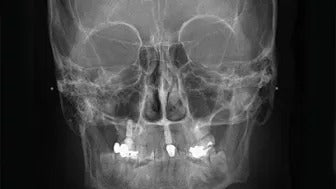

PA cephalometric images offer great details — thanks to the powerful dedicated X-ray source.
Carpus imaging (optional) information to determine patient age and growth.

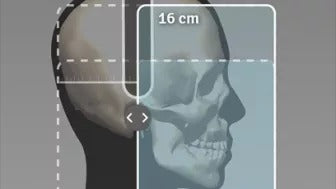

Lateral cephalometric programs for adult and pediatric patients with adjustable 16 to 26 cm fields width.
DEXIS CBCT:
Long-term Reliability
Backed by a 10-Year Warranty
Investing in a CBCT device is a significant decision for any dental practice, as these advanced imaging systems are crucial for accurate diagnostics and treatment planning. At DEXIS, we understand the importance of this investment and provide a 5-year factory warranty as standard to ensure a solid foundation of security. However, we also offer an additional 5 years of coverage1, extending our comprehensive warranty up to 10 years.
A DEXIS extended warranty is valid for all ORTHOPANTOMOGRAPH™ OP 3D™ LX and ORTHOPANTOMOGRAPH™ OP 3D™ EXmodels and includes all spare parts. However, you can choose to include an extra 5 years of warranty for only the sensor and tubehead. You also have the option for extending the warranty after the CBCT unit installed, and the standard 5-year warranty is already in use.
Downloads:
User Manual (PDF)
